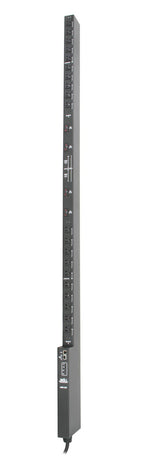

NBB-20VS30-1 Network Boot Bar 30 Amp 100 - 125V

SKU: NBB-20VS30-1
$2,575.00
WTI Vertical PDU, Metered, Switched, 0U, Single 30 Amp Input, 100-125V AC, (20) NEMA 5-15R Outlets

Warranty + Software options:

    Need help? Our team can walk you through finding the right product. Chat Now

    Includes

    • Quick Start Guide
    • RJX-7 - Network Cable, RJ45, Cat5, Straight-Through, 7 ft. (2.1 M)
    • A13795 Zero-U Button Mount Bracket Kit
    • A14291 Zero-U Bracket Mounting Kit

    Overview

    The NBB Network Boot Bar is a vertical format, network grade power distribution unit that provides Out-of-Band access to power switching/reboot, monitoring and alarm functions at distant branch office and data centers. The combination of remote reboot capabilities plus monitoring and alarm functions yields a more proactive approach to network management; both increasing network resilience and minimizing disruptions and outages.

    The NBB’s powerful array of versatile, adaptable monitoring and alarm functions allows a more informed view of conditions and events at remote equipment sites, and helps to mitigate risks of downtime with real-time local and remote alerts to warn of potential problems before they turn into minor league disasters. The space-saving, vertical format of the NBB makes it the perfect fit for cramped equipment racks, where space for new devices is either limited or nonexistent.

    Specifications

    DevOps Automation:

    • RESTful Web Services API
    • Modules Available on Ansible Galaxy
    • SYSLOG & Streaming Telemetry Support
    • Slack & Splunk Support
    • Zero Touch Provisioning (ZTP) Support

    In-Band/Out-of-Band Connectivity:

    • In-Band: 10/100/1000Base-T Ethernet Port
    • Out-of-Band: External Modem Ready
    • Local Access: RJ45 RS232 Setup Port
    • Supports IPv4 and IPv6

    Unit Management:

    • Compatible with WMU Enterprise Management Software
    • CLI & HTML5 Web-Based GUI
    • SNMP & Full MIB Support
    • FTP/TFTP/SFTP/SCP
    • DHCP/DNS/DDNS
    • NTP for True Server Sync
    • Multiple Concurrent SSHv2 Sessions

    Remote Power Management:

    • 20 Switchable NEMA 5-15R Outlets
    • Remote Individual or Group Outlet Switching
    • On/Off/Reboot/Default/Load Shed Switching
    • Outlet Sequencing & Power Up Delays
    • User-Defined Power-Up Default Status & Outlet Status Retention
    • Plug Naming, Grouping & Access Control
    • Scheduled On/Off/Reboot Switching
    • Single 30 Amp Power Input Feed
    • Ping Watchdog with Auto Reboot
    • 120 VAC, 50/60 Hz

    Security & Authentication:

    • HTTPS, SSHv2, SNMPv3
    • Transport Layer Security (TLS) v1.3
    • IPSec (Server/Client) & OpenVPN
    • IPtables / Static Routes
    • Supports DUO, Okta and RSA® Two-Factor Authentication
    • SAN Certificate Support
    • AAA: LDAP / Active Directory / Kerberos / RADIUS / TACACS+
    • Embedded Validated FIPS 140-2 Cryptographic Module
    • Plug-Specific Password Protection

    Event Monitoring, Logging & Notification:

    • True RMS Current Metering
    • Total or Branch Specific Metering
    • Reports kWh, kW, Amps, Volts, Temperature
    • Over-Current Alarms
    • Lost Voltage (Line In) Alarm
    • Invalid Access Lockout Alarm
    • Circuit Breaker Open Alarm
    • Temperature, Command & Event Logging
    • Power Cycle Alarm
    • Ping-No-Answer Alarm (Failed Ping Command)
    • No Dialtone Alarm
    • Alarm Notification via Email, SNMP, SYSLOG
    • Alarm, Command, Access Audit, Current, Voltage, Watts and Temperature Logging
    Specifications:
    Connectivity:
    Ethernet Port: 10/100/1000Base-T, RJ45 Port
    Local Access: (1) RJ45 RS232C Console Port (Modem Ready)
    Power Management:
    Voltage: 100-125V AC, 50/60 Hz
    Power Distribution: 2.4/3.0 kW (80% De-Rated)
    Controlled Outlets: (20) NEMA 5-15R
    Current: 30 Amps
    Power Inlet(s): (1) 30 Amp NEMA L5-30P
    Branches per Inlet: (4) 20 Amp Circuit Breakers UL-489
    Power Input Cable: Attached, 30 Amp NEMA L5-30P, 10ft
    Physical/Environmental:
    Size: 68.5"H x 1.75"W x 3.25"D (0U) - 13" Base has 5.5"Depth (174 cm H x 4.5 cm W x 8.25 cm D)
    Weight: 40 Pounds (18 Kg) Shipping Weight
    Operating Temperature: 32° to 122° F (0° C to 50° C)
    Humidity: 10% to 90% RH
    Mounting: Zero-U Rack Brackets Included
    Agency Approvals:
    FCC, UL

    Downloads

    Software

    WTI regularly issues software updates to add new features, address irregularities and incorporate new security enhancements.

    Download the latest software.

    To speak with a qualified product engineer about custom software requests, please call: 1.800.854.7226.
