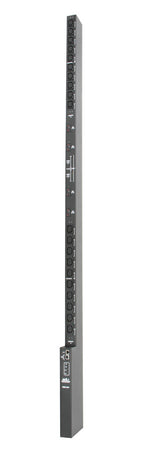

NBB-20VS20-2 Network Boot Bar 20 Amp 208V

SKU: NBB-20VS20-2
$2,574.00
WTI Vertical PDU, Metered, Switched, 0U, Single 20 Amp Input, 100-250V AC, (20) IEC 320 C13 Outlets.

Recommended options:

    Warranty + Software options:

      Need help? Our team can walk you through finding the right product. Chat Now

      Includes

      • Quick Start Guide
      • RJX-7 - Network Cable, RJ45, Cat5, Straight-Through, 7 ft. (2.1 M)
      • A13795 Zero-U Button Mount Bracket Kit
      • A14291 Zero-U Bracket Mounting Kit

      Overview

      The NBB Network Boot Bar is a vertical format, network grade power distribution unit that provides Out-of-Band access to power switching/reboot, monitoring and alarm functions at distant branch office and data centers. The combination of remote reboot capabilities plus monitoring and alarm functions yields a more proactive approach to network management; both increasing network resilience and minimizing disruptions and outages.

      The NBB’s powerful array of versatile, adaptable monitoring and alarm functions allows a more informed view of conditions and events at remote equipment sites, and helps to mitigate risks of downtime with real-time local and remote alerts to warn of potential problems before they turn into minor league disasters. The space-saving, vertical format of the NBB makes it the perfect fit for cramped equipment racks, where space for new devices is either limited or nonexistent.

      Specifications

      DevOps Automation:

      • RESTful Web Services API
      • Modules Available on Ansible Galaxy
      • SYSLOG & Streaming Telemetry Support
      • Slack & Splunk Support
      • Zero Touch Provisioning (ZTP) Support

      In-Band/Out-of-Band Connectivity:

      • In-Band: 10/100/1000Base-T Ethernet Port
      • Out-of-Band: External Modem Ready
      • Local Access: RJ45 RS232 Setup Port
      • Supports IPv4 and IPv6

      Unit Management:

      • Compatible with WMU Enterprise Management Software
      • CLI & HTML5 Web-Based GUI
      • SNMP & Full MIB Support
      • FTP/TFTP/SFTP/SCP
      • DHCP/DNS/DDNS
      • NTP for True Server Sync
      • Multiple Concurrent SSHv2 Sessions

      Remote Power Management:

      • 20 Switchable IEC 60320 C13 Outlets
      • Remote Individual or Group Outlet Switching
      • On/Off/Reboot/Default/Load Shed Switching
      • Outlet Sequencing & Power Up Delays
      • User-Defined Power-Up Default Status & Outlet Status Retention
      • Plug Naming, Grouping & Access Control
      • Scheduled On/Off/Reboot Switching
      • Single 20 Amp Power Input Feed
      • Ping Watchdog with Auto Reboot
      • 240 VAC, 50/60 Hz

      Security & Authentication:

      • HTTPS, SSHv2, SNMPv3
      • Transport Layer Security (TLS) v1.3
      • IPSec (Server/Client) & OpenVPN
      • IPtables / Static Routes
      • Supports DUO, Okta and RSA® Two-Factor Authentication
      • SAN Certificate Support
      • AAA: LDAP / Active Directory / Kerberos / RADIUS / TACACS+
      • Embedded Validated FIPS 140-2 Cryptographic Module
      • Plug-Specific Password Protection

      Event Monitoring, Logging & Notification:

      • True RMS Current Metering
      • Total or Branch Specific Metering
      • Reports kWh, kW, Amps, Volts, Temperature
      • Over-Current Alarms
      • Lost Voltage (Line In) Alarm
      • Invalid Access Lockout Alarm
      • Circuit Breaker Open Alarm
      • Temperature, Command & Event Logging
      • Power Cycle Alarm
      • Ping-No-Answer Alarm (Failed Ping Command)
      • No Dialtone Alarm
      • Alarm Notification via Email, SNMP, SYSLOG
      • Alarm, Command, Access Audit, Current, Voltage, Watts and Temperature Logging
      Specifications:
      Connectivity:
      Ethernet Port: 10/100/1000Base-T, RJ45 Port
      Local Access: (1) RJ45 RS232C Console Port (Modem Ready)
      Power Management:
      Voltage: 100-250V AC, 50/60 Hz
      Power Distribution: 3.2/3.8 kW (80% De-Rated)
      Controlled Outlets: (20) IEC 60320 C13
      Current: 20 Amps
      Power Inlet(s): (1) IEC-60320-C20 Inlet
      Branches per Inlet: 2
      Power Input Cable: Not Included (Sold Separately)
      Physical/Environmental:
      Size: 68.5"H x 1.75"W x 3.25"D (0U) - 13" Base has 5.5"Depth (174 cm H x 4.5 cm W x 8.25 cm D)
      Weight: 40 Pounds (18 Kg) Shipping Weight
      Operating Temperature: 32° to 122° F (0° C to 50° C)
      Humidity: 10% to 90% RH
      Mounting: Zero-U Rack Brackets Included
      Agency Approvals:
      FCC, UL

      Downloads

      Software

      WTI regularly issues software updates to add new features, address irregularities and incorporate new security enhancements.

      Download the latest software.

      To speak with a qualified product engineer about custom software requests, please call: 1.800.854.7226.
